实地学习第一个帖 无+1.5VSP、+1.05V_VCCP一个电容的问题
来实地那么长时间,从开始的0基础,到现在有自己的维修思路,算是蜕变吧,废话不说言归正传

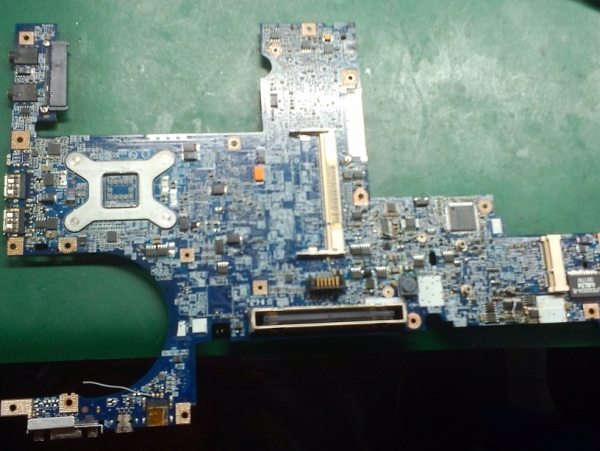

上板:

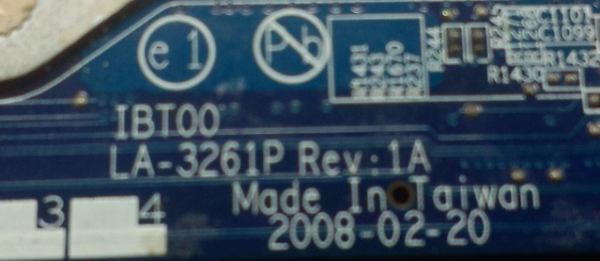

板号:

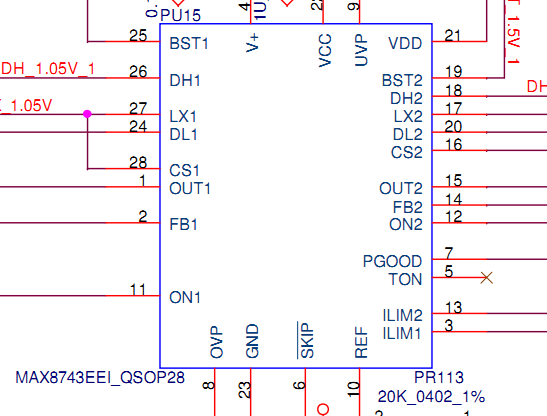

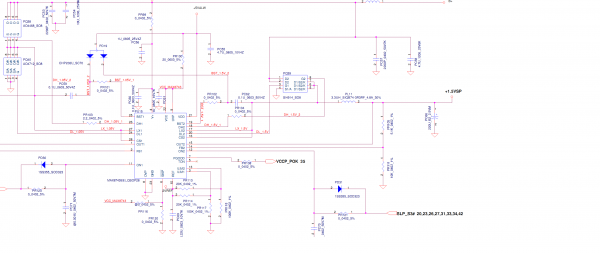

打值正常,上电测MAX8743各供电正常,为了快修把+3VALWP经10K电阻上拉ON1、ON2






REF基准2V正常,ILIM1、ILIM2电压1.66V正常

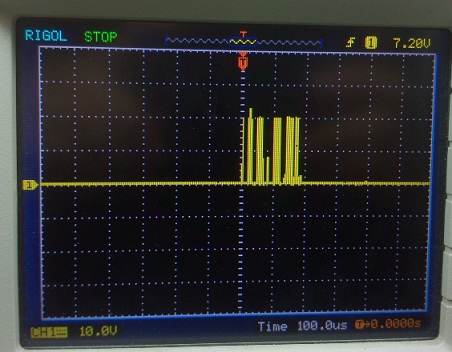

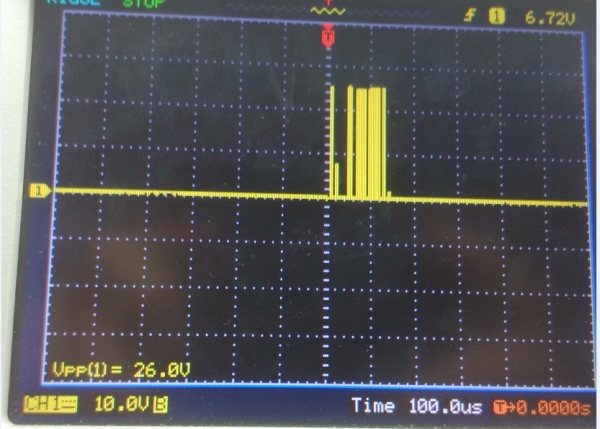

测+1.05V_VCCP PWM上管G极波形


+1.5VSP PWM上管G极波形
上管G极波形正常,排除自举升压、驱动脚问题

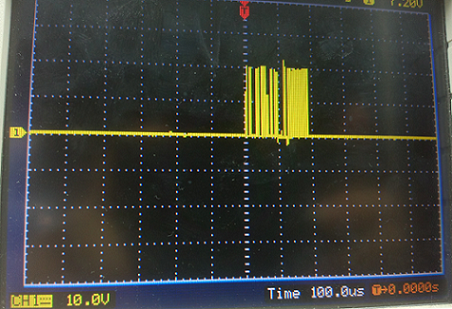

接着测+1.05V_VCCP 电感前端波形


+1.5VSP 电感前端波形


根据波形故障分析:
两路PWM上管G极波形正常,电感前端波形也正常,说明电感之前无问题,掉电就是芯片保护,芯片保护一般就是输出电压检测出问题(FB、OUT),再就是电感后级有问题(滤波电容、接点之后的各负载电路),芯片或板层问题(先不考虑)
MAX8743有两路PWM,必须要确定是那一路PWM造成的,就要测两路PWM电感后端波形,先断开电感后的接点

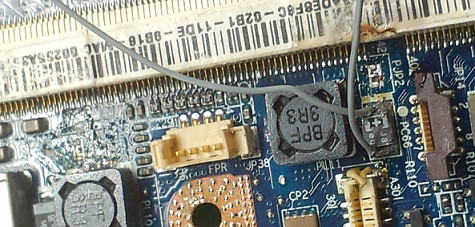

很明显1.5V波形不正常(1格1V就完美了),并一个电容上去

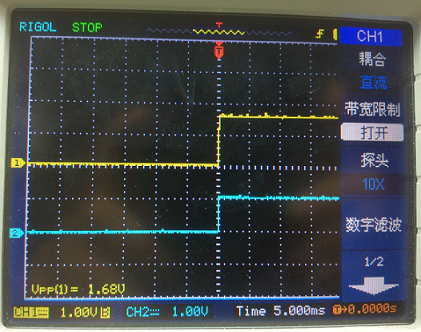

非常完美的波形出现,成功修出那个乐啊,以前用万用表干死也测不出来 不断感叹 还是波波好啊


在这写的很简单,那是经过整理的 ,修这块板走了很多弯路,单芯片就换了几个,反馈也检查了几遍,多亏老师最终指点问题才算解决,回头想一下原来问题就这么简单,在此多谢刘老师、阿林老师,还有几个好朋友谢谢你们 咱们一起努力

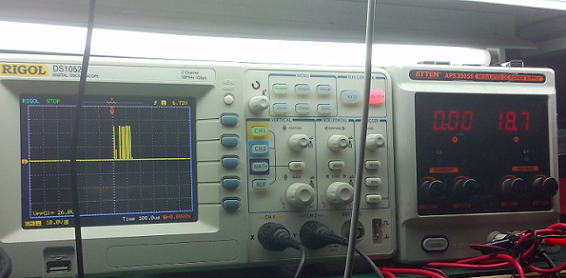

顺便晒下实地的工具

顺便晒下实地的工具
